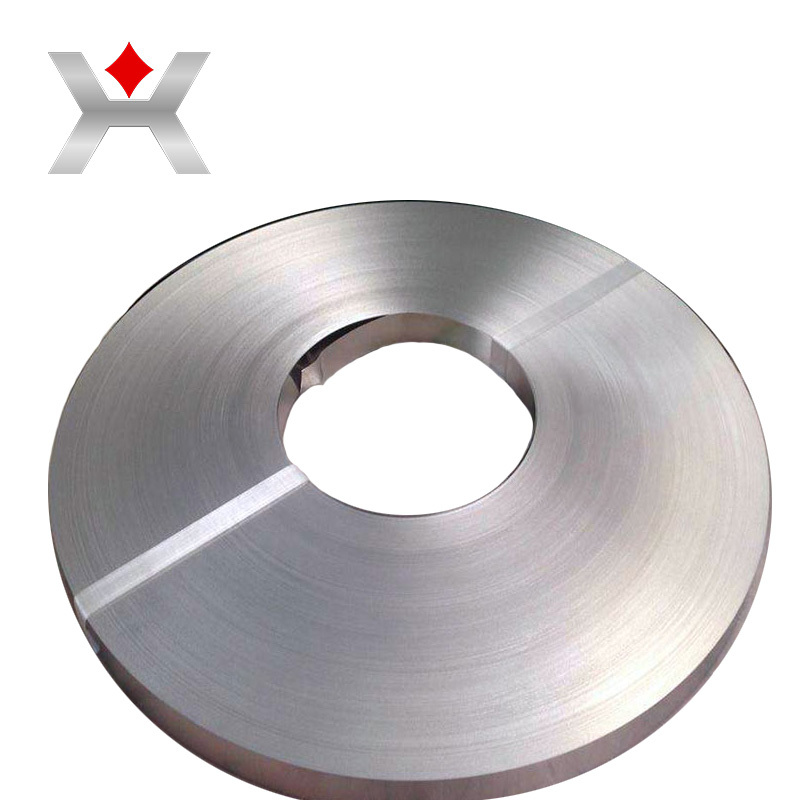

Name: Aluminum Strip for Transformer Winding
Brand: Wan Star Aluminum Industry
Availability: InStock
Rating: 5 (1 reviews)

Description

Aluminum strip for transformer windings is the key raw material for manufacturing transformer windings. It is a strip obtained by rolling aluminum ingots. Aluminum strips for transformer windings are divided into different brands, specifications, and states according to their uses. The grades of aluminum strips used for transformer windings include: 1060, 1050, 1050A, 1060, 1070, 1070A, 1350, etc., status: O status. O represents the soft state, and numbers can be used later to indicate the degree of softness and hardness, as well as the degree of annealing.

Item	Aluminum Strip for Transformer Winding
Standard	ASTM, AISI, JIS, ISO, EN, BS, GB, etc.
Tolerance	±3%
Size	Thickness: 0.1~3.0mm Width: 6mm~1200mm Various sizes can be customized
Export to	United States, Australia, Brazil, Canada, Germany, Peru, Japan, Italy, United Kingdom, Arabia, etc.
Packaging details	(1) Standard seaworthy export packaging, wooden pallet with plastic protection for strip (2) Packaging can be according to customer's requirements
Price term	EXW, FOB, CIF, CFR, CNF, etc.
Payment	T/T, Western Union, L/C, etc.
Certificates	TUV&ISO&GL&BV, etc.
Grade	1000 Series
Yield (≥ MPa)	>195
Temper	O - H112
Ultimate Strength (≥ MPa)	>175
Elongation (≥ %)	>10
